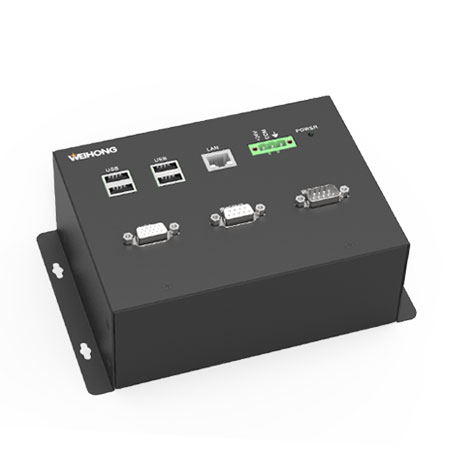

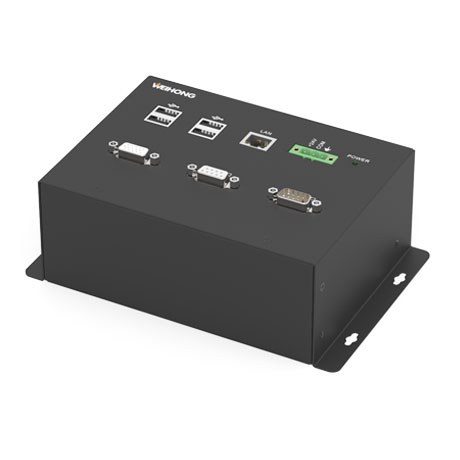

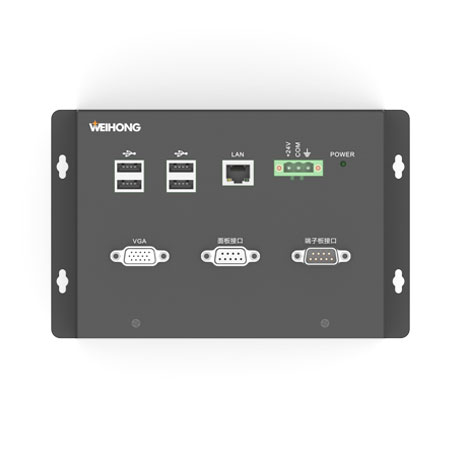

NC60A





























						 123




































			Products

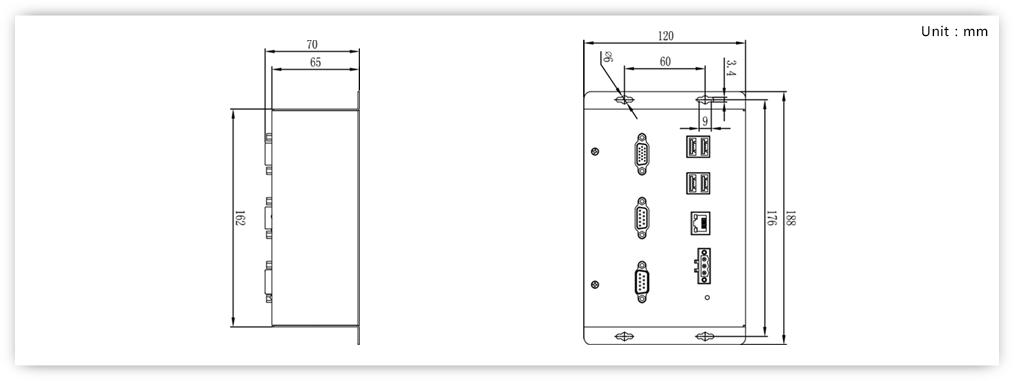

			Mounting Dimension











			Specifications







					USB



					4*USB 2.0









					LAN



					1*Giga LAN









					VGA



					Max1920*1280

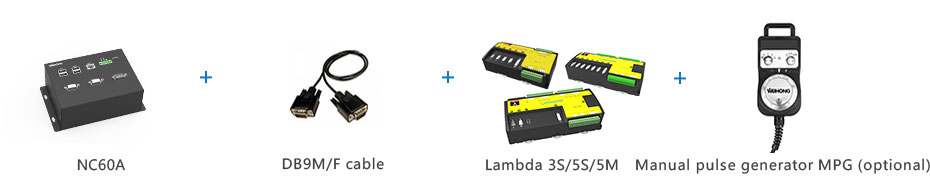

					Communication with Lambda by



					PHOENIX BUS terminal









					Analog voltage output



					0-10V









					Tool Magazine



					Linear type, Disk type, Servo type









					Tool Measurement



					Auto and Manual measurement









					Tool Calibration



					Fixed tool calibration, Mobile tool calibration, First calibration & Calibration after tool change









					Compensation Type



					Workpiece compensation, Screw error compensation, Backlash compensation, AQE compensation, Tool compensation









					Supported File Format



					*.G；*.NC；*.UG;*.DEMO;*.ISO;*.ENG;*.CUT;*.DXF;*.PLT;*.TXT









					WCS Setting



					Supporting G54~G59 and WCS origin saving









					Processing Technology



					Multi-tasking, Array function, Mirror & Rotate, Multi-layer machining, Cycle machining









					Convenient Operations



					Handwheel guide, Breakpoint resume, Tool selection









					Interpolation Algorithms



					S-type, LEP, Acceleration T type algorithms









					Software Language



					Chinese, English









					CNC Software Alarm



					Alarms of program error, operation error, over-travel error, PLC error and IO communication error

















			Widely applied in……













		Successful Cases

		Small size, superior performance



















						Glass engraving machine











						Plate cutting machine











						Machining center











						Mold engraving machine

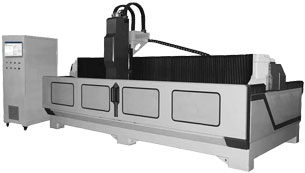

						Stone carving machine
